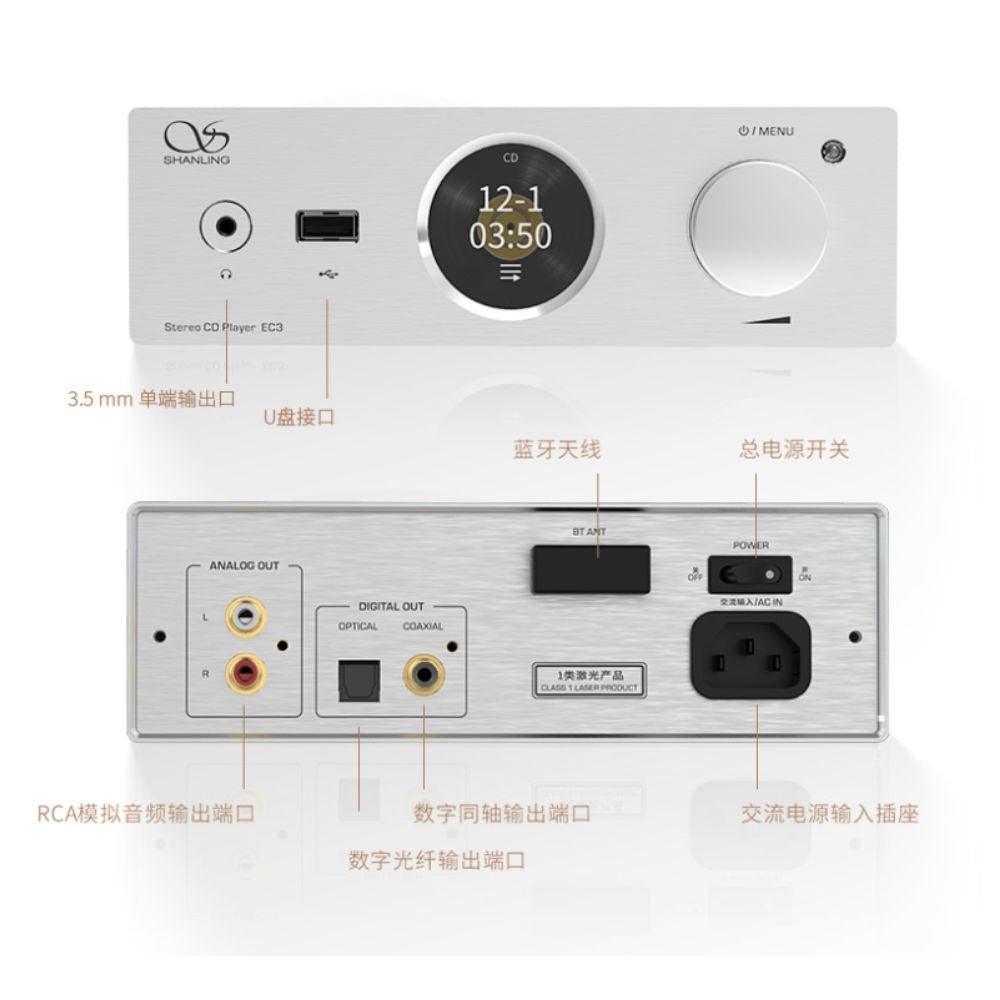

EC3

Standard parameters

Dimensions: 18.8 x 25.5 x 6.8 cm (width x depth x height)

Net weight: Approximately 2.4 kg

Power consumption: 15W

Preamp output

• Audio output level: 2.3V
• Frequency response: 20Hz-20kHz (+0.5dB)
• Signal-to-noise ratio: 116dB
• Distortion: <0.001%
• Dynamic range: 116dB

Headphone output

• Low gain: 20mW@32 Q
• High gain: 70mW@32 Q
• Frequency response: 20Hz-40kHz (-0.2dB)
• THD+N: 0.0015%
• Resolution: 65dB@32Q
• Dynamic range: 116dB
• Signal-to-noise ratio: 114dB
• Noise floor: 107dB
• Output impedance: less than 0.4Ω
