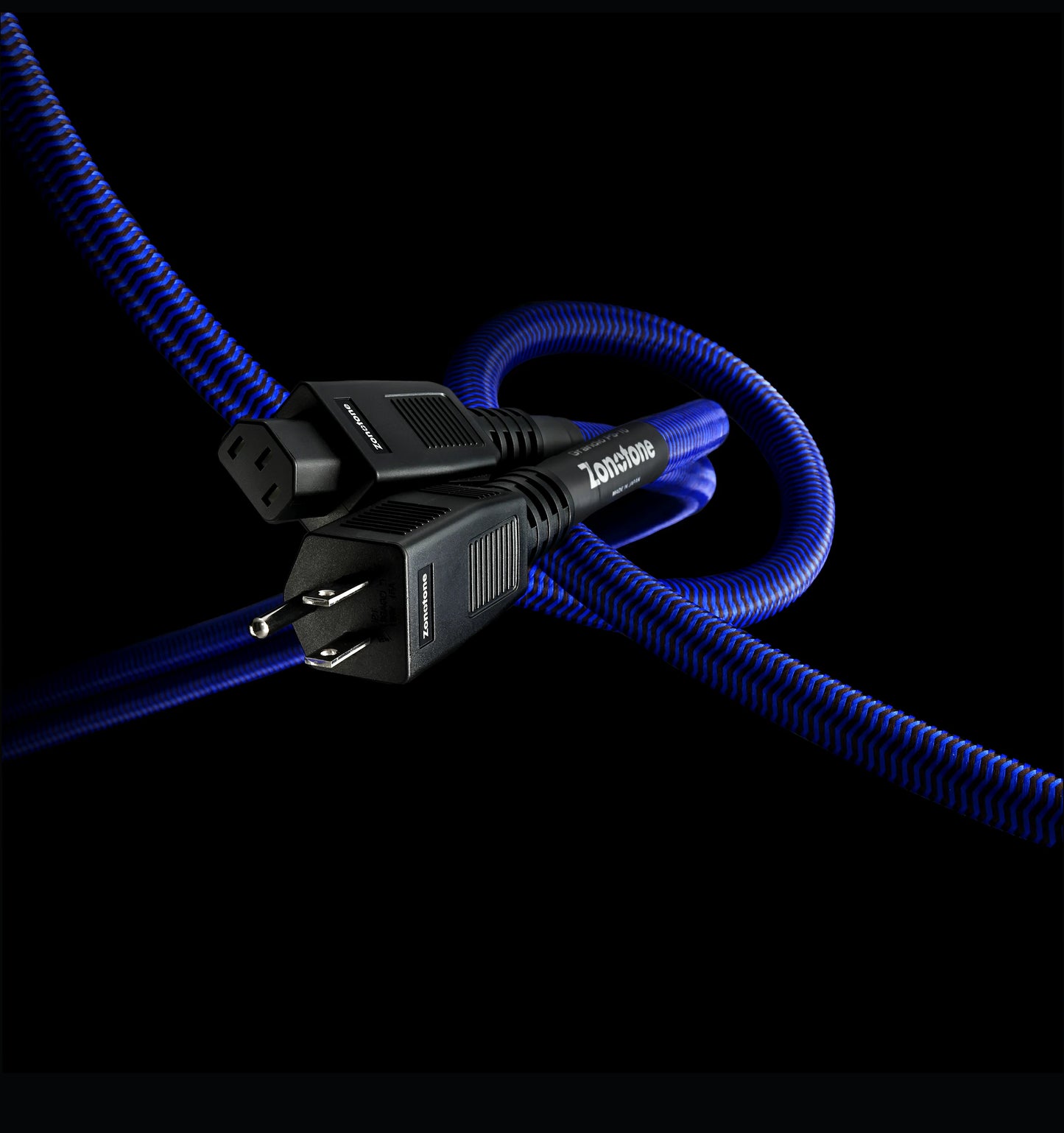

Grandio PS-10

Conductor composition: Ultra-high purity 6NCu, high-performance pure copper wire HiFC, pure silver coated OFC, high-purity oxygen-free copper OFC

Structure: Multi-strand structure composed of 4 types of mixed conductors, 3-core design (the ground wire and green part use only high-purity oxygen-free copper wire).

Conductor dimensions: 5.5 mm² × 3

Outer sheath: An original, custom-designed sheath with a robust braided pattern in blue and dark blue provides excellent vibration damping, effectively maintaining stable cable performance over extended periods.

Sheath: PVC (compliant with EU RoHS standards)

Insulator: Heat-resistant PVC

Shielding: Thick aluminum-clad shielding

Filling: Natural cotton thread

Outer diameter: 16mmφ

Power plugs and connectors: The plugs and sockets are made using a heavy-duty one-piece mold, prioritizing safety. The contacts are coated with a durable and high-performance rhodium plating, which will not be damaged by prolonged and vigorous insertion and removal.

Withstand voltage: 2000V/min

Conductor resistance: 3.5Ω/km

Insulation resistance: 5MΩ/km

Permissible current (rated): 15A (125V) VCTF (compliant with PSE standards)

*If your household power outlet is a 2P type and a 3P-2P adapter is not included, please purchase one separately.
