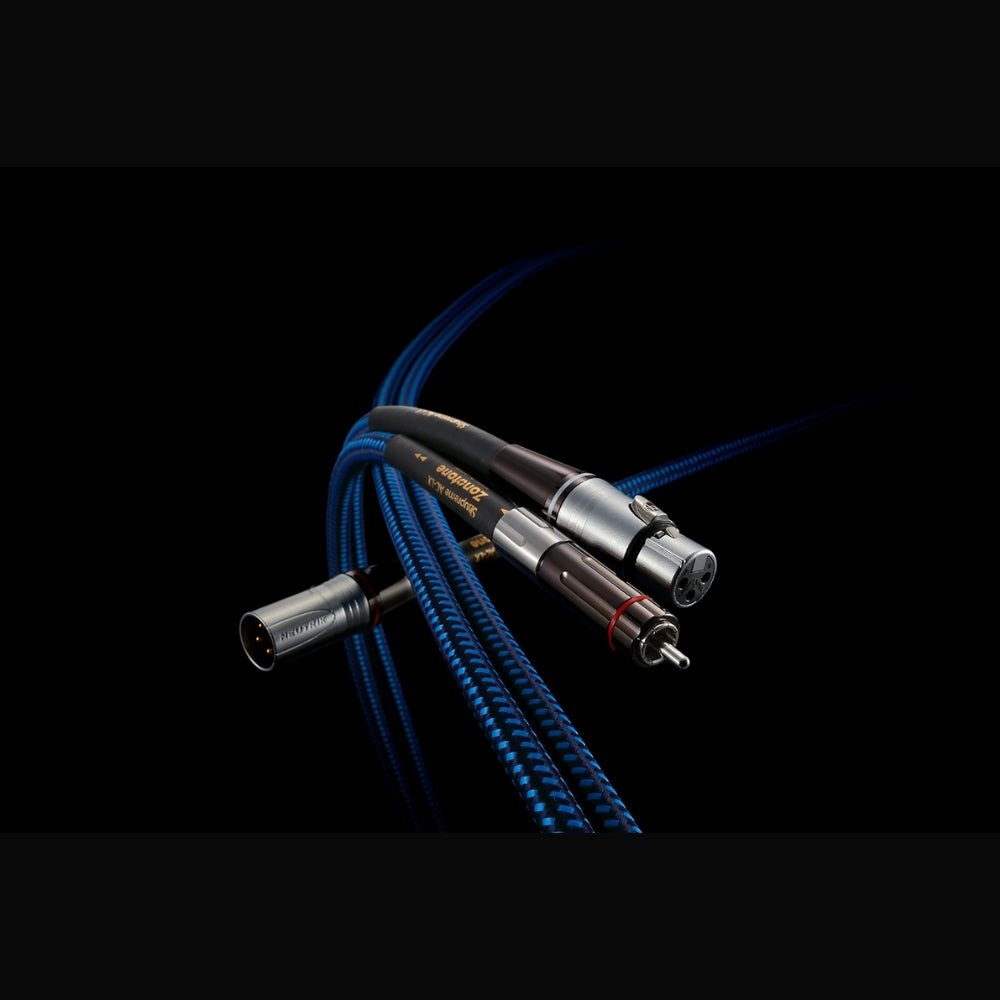

Shupreme AC-LX

Conductor composition: Ultra-high purity 7N grade copper, high-purity copper special alloy, high-purity oxygen-free copper wire (PCUHD), silver-plated oxygen-free copper (Silver-plated OFC), and high-purity oxygen-free copper (OFC). These five materials are mixed in a unique golden ratio with different materials and diameters to form an original conductor.

Structure: It adopts a hybrid independent 8-core structure, arranged around the insulating tube. The 4 cores are arranged in a grouped isolation manner.

Conductor size: 2.5 square millimeters (4 cores) × 2 (8 cores total) (mono)

Outer sheath: Adopting the original Zonotone design, a two-tone high-strength nylon braided layer is added to the outside of the sheath to improve durability.

Sheath: Made with a new type of environmentally friendly PVC sheath that is lead-free and cadmium-free (compliant with RoHS standards).

Insulator: Made of high-purity polyethylene, which has excellent dielectric properties.

Shielding layer: The inner sheath adopts a double shielding structure of thick aluminum foil wrapping and high-density soft wire braiding.

Filling material: hollow PE tube, combined with an air insulation structure to improve signal transmission stability.

Outer diameter: 10mmφ

terminal

• RCA terminal: Precision-machined one-piece clamping and locking structure (Collet Chuck method). Terminal cap: Nickel plated / Contact pin: Rhodium plated, terminal cap maximum diameter 14.0mmφ.
• XLR terminals: Neutrik professional terminals, gold-plated contacts, maximum terminal diameter 20.5mmφ.
