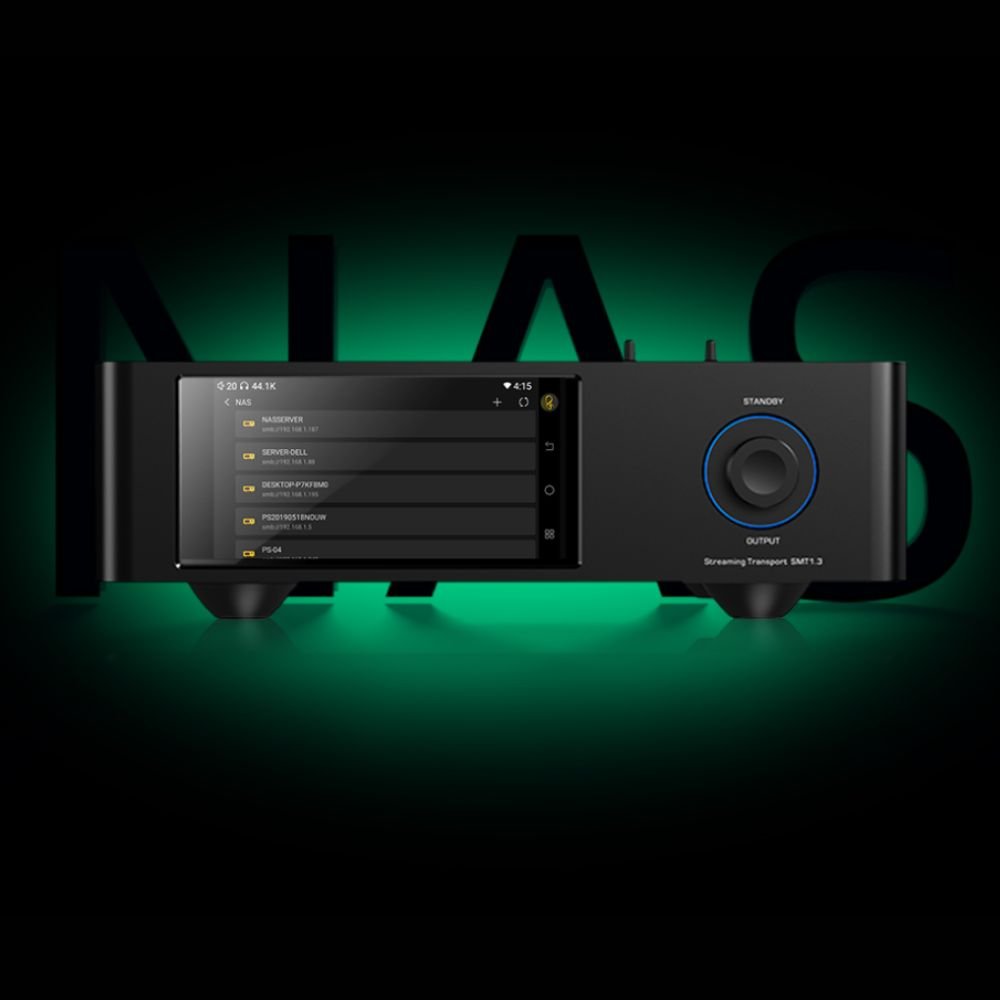

SMT1.3

Standard parameters

Dimensions (excluding base): 280mm*280mm*76mm

Weight: 4.5kg

Screen: 4.96-inch 1080P Sharp HD touchscreen

Main control chip: Rockchip data stream processor

Audio formats supported: DSD, DXD, APE, FLAC, WAV, AIFF/AIF, DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3, OPUS, TAK, etc. CUE supported.

2T power supply: 220V AC input

Output Specifications

• USB output: PCM 768kHz/32bit, DSD 512
• 12S Output: PCM 768kHz/32bit, DSD 512
• AES/EBU Output: PCM 192kHz/24bit, DOP64
• BNC Output: PCM 192kHz/24bit, DOP64
• Fiber Optic (OPT) Output: PCM 192kHz/24bit, DOP64
• Coaxial output: PCM 192kHz/24bit, DOP64


MQA output parameters

•
  USB: MOA Decoder (2x)
• Other outputs: MOA Full Renderer (16x)

*Specific output parameters vary depending on the interface specifications supported; 12S is recommended.
